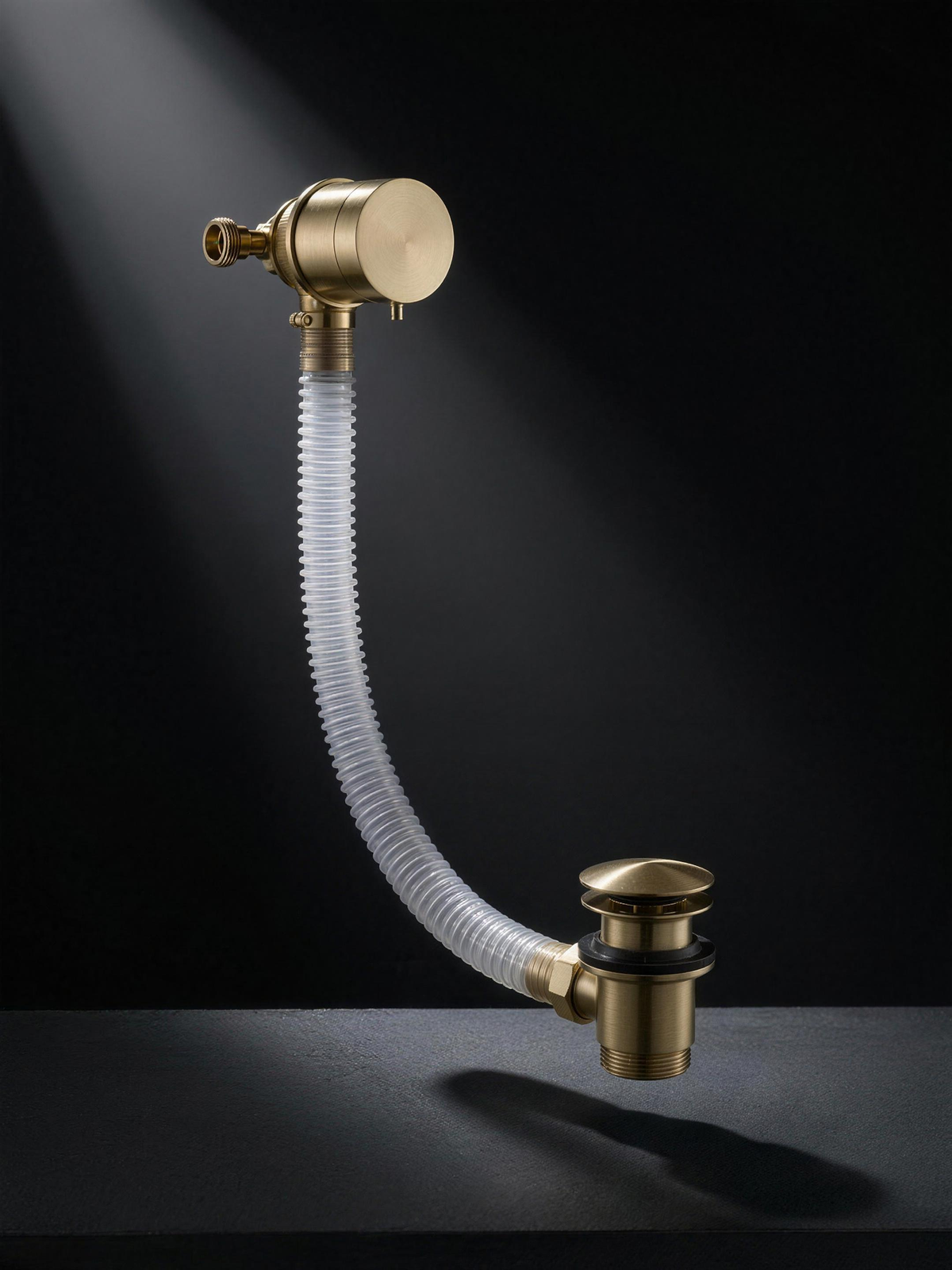

Fonte Overflow Filler
£325
A bath filler in the overflow. The valve and temperature control sit behind one Ø 68 mm dial at the bath's edge — no taps on the rim, nothing carried over the water, the full length of the bath kept for bathing. Brass and stainless steel through-parts.
Fills at up to 28 l/min. The click-clack waste and 600 mm overflow pipe travel in the box — one fitting replaces three. Built to specification standard.
Finish
Cast Brass
Request a sample
Dispatch
In stock
Returns
30-day returns on stocked pieces
Delivery
Free UK delivery over £200 · £4.95 under · next-day available at checkout
Guarantee
Termless guarantee · see terms
Range
Fonte
Material
Brass · stainless steel · ABS
Control
Single dial · flow and temperature
Face
Ø 68 mm
Body
74 mm behind the bath · 73.6 mm face
Fits panel
5–10 mm
Connections
2 × G¾
Overflow pipe
Ø 33 × 600 mm
Waste
Click-clack · Ø 70 × 62 mm · G1½
Flow rate
3.2 / 7 / 12 / 15 / 17.7 / 21.3 / 25 / 28 l/min at 0.2 / 0.5 / 1 / 1.5 / 2 / 3 / 4 / 5 bar
Minimum pressure
1 bar
In the box
Filler valve · click-clack waste · overflow pipe
Guarantee
Termless
Fills through the overflow; minimum operating pressure 1 bar — check the supply before specifying. The click-clack waste and 600 mm overflow pipe travel in the box. Nothing sits on the bath rim.
