CL-BL-001-CBArchitectural Hardware > Locks & Latches
Request a sample

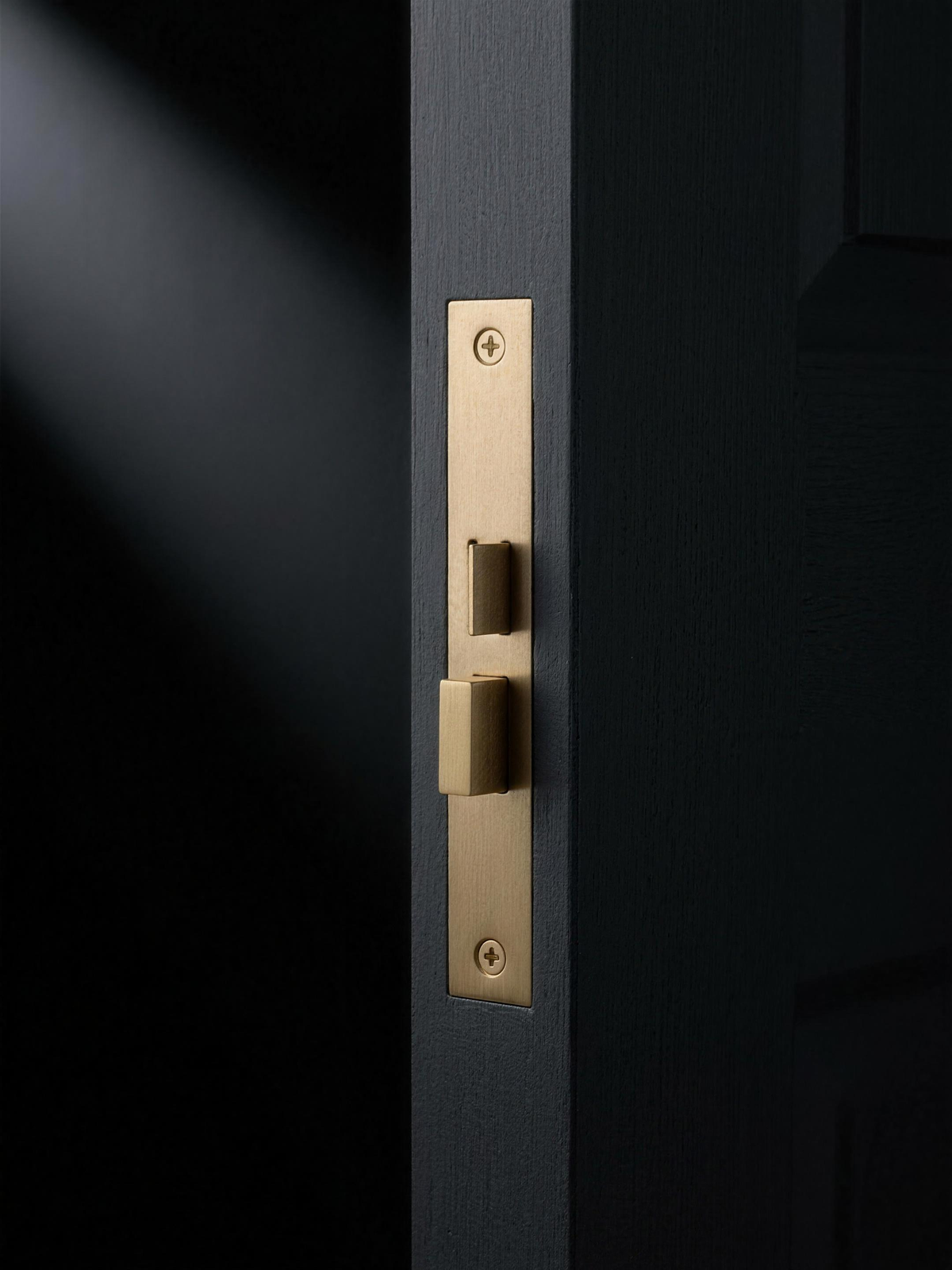

Cast Bathroom Lock
£45
A bolt-through bathroom mortice lock, finish-matched to the full Cast range. 76 mm case, 57 mm backset, deadbolt thrown by a 5 mm turn. Built to specification standard.
- Case 76 mm · backset 57 mm
- Faceplate 152 × 22 mm · centres 57 mm
- 8 mm lever follower · 5 mm turn follower

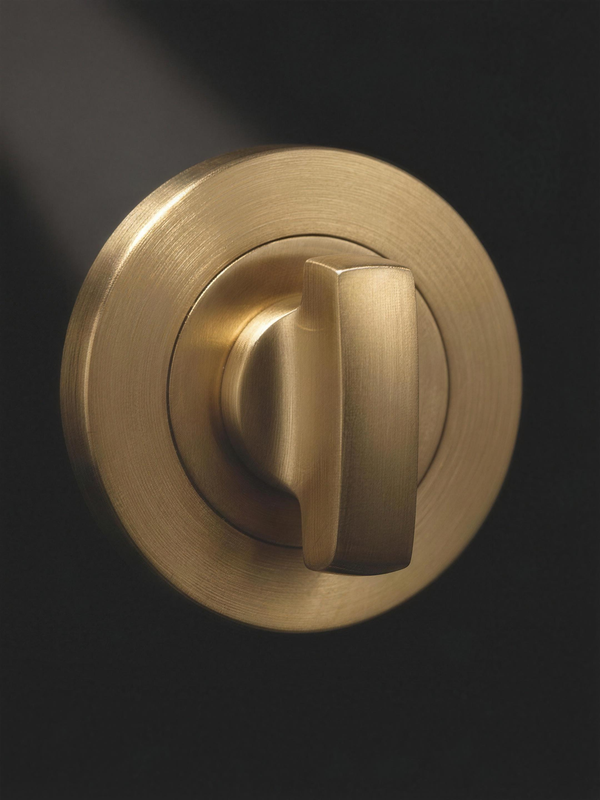

- Pairs with the Cast Thumb Turn
- Door thickness 35 – 50 mm
- Steel case, fixed forend
- CE and UKCA marked to BS EN 12209 — FD60 with intumescent protection
- Supplied with strike plate and fixing screws
- Termless guarantee
Finish
Cast Brass
Request a sample
Dispatch
In stock
Returns
30-day returns on stocked pieces
Delivery
Free UK delivery over £200 · £4.95 under · next-day available at checkout
Guarantee
Termless guarantee · see terms
Range
Cast
Material
Steel case
Case size
76 mm
Backset
57 mm
Faceplate
152 × 22 mm
Centres
57 mm
Follower
8 mm lever · 5 mm turn
Fire rating
FD60 with intumescent
Certification
CE · UKCA · EN 12209
Suits door thickness
35 – 50 mm
Application
Timber
Use
Interior · privacy
Pack quantity
1 · lock and strike plate
Supplied with
Strike plate and fixing screws
Guarantee
Termless
Pairs with the Cast Thumb Turn and any Cast lever on a 5 mm spindle. Intumescent protection must be used on fire doors — follow the door leaf certificate.
